AI+All-terrain Mobility Robot
All-terrain Adaptation
Wheeled auadruped robotic chassis + Dual-track climbing system adapts flexible to various complex terrains. 13 sets ofpowered-systems provide exceptional stablity and obstacle-crossing capabilities, making it effortless to navigate stairssteep slopes, and rugged surfaces as if it traversing flat ground.
Dual-mode System
Dual-mode System
Effortlessly crosses wide gap, steps and navigates complex terrains
Caterpillar Mode
The wheeled quadruped robot chassis is equipped with an independent power system and suspension shock absorption system for the four wheels, which has strong off-road performance and provides comfortable experience.
AI Control
Detect obstacles through LIDAR, gyroscopes, etc., to construct the spatial morphology and determine the spatial position. Making use of the unique models and algorithms to control the deformation and movement of the robot, achieving fully automated control during the process of going up and down stairs, crossing slopes, traversing road shoulders and so on, truly realizing intelligence, comfort, and safety.
Intellent Mode Switching
Automatically switches modes according to the shapes of obstacle and intention of the users to adapt to various terrains, maximizing passability.
Intellent Matching of Power Output
Automatically make decisions to match the best power output as needed, including four-wheel power, track power, quadruped joint power, etc.
Intelligent Safety Guarantee
Automatically identify and actively adjust dangerous or incorrect postures and operations during driving to ensure comfort and safety.
All-terrain Mobility Robot
x12
40°
15°
220MM
40°
150MM
400MM
Automatic Posture Stabilization System
Adapt to terrain changes, the quadra wheels
actively adjust to maintain the stable posture of the machine
All-terrain 360° Self-Balancing Dynamic Seat
Featuring the industry-first Prow Stabilization System, this seat integrates gyroscopic sensors with a proprietary spatial safety algorithm to achieve automatic balance on all complex terrains.
And the machine can implement 360° omnidirectional steering on slopes, steps, and rugged paths while maintaining stable.
Intelligent Assistive Driving
Obstacle Avoidance Warning
Reverse Collision Detection and Warning
Timely Drop-off Risk Warning
Automotive-grade security standard, laser radar precisely detects the environment.
Proactively alerts the user that they are in a hazardous area and gives a voice warning of potential fall or tip-over risks.
Specification
| Weight | About 100kg | Maximum Driving Speed | 12km/h |
|---|---|---|---|
| Maximum Load | 136kg | Range | 35km |
| Balance Type | 360° Full-time automatic balancing | Upstairs Speed | 30 steps/min |
| Chasis Type | Wheeled quadruped robot chasis | Downstairs Speed | 35 steps/min |
| Chasis Powertrain Quantity | 10 | Pitch Range | Tilt forward angle 8° Declining angle 43° |
| Total Powertrain Quantity | 13 | Ditch Span Width | 400mm |
| Sensor Type | LiDAR and Gyroscope | Front Wheel | Mecanum wheel |
| Assisted Safe Driving Warm | Standard | Rear Wheel | Solid wheel |
| Reverse-parking Radar | Standard | Waterproof Rating | IP5X |
| Automatic Following | Option | Entertainment Features | Gentle Sway Mode, AI-powered Interactive Mode |
| Lifting Range |
Maximum seat height from ground: 619mm Minimum seat height from ground: 414mm
|
Obstacle Height |
Forward: 220mm Backward: 150mm
|
| Minimum Turning Radius |
Wheeled quadruped mode: 821mm Caterpillar mode: 590mm
|
Uphill Angle |
Backward: 40° Forward: 15°
|
| Movement Mode |
|
Operation Mode |
|
*The above product functions and parameters are subject to the final product manual.
X12 Pre-order Process
Global Pre-order Open NOW!
Feel free to contact us by filling out the form.

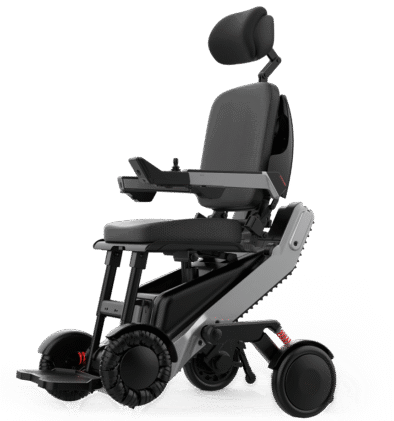

All-terrain Mobility Robot
X10
All-terrain Mobility Robot X10
All-Terrain Travel Worry-free
Self-balancing seat position and safety assist driving system help you go freely through obstacles like stairs, slopes and speed bumps. Smooth maneuverability makes you control multi-direction and climb stairs easily.
Maximum Load Capacity
150KG
Battery Parameters
15KM
Stair Slope
20-45°
Item Weight
80KG
Driving speed
8KM/H
Maximum Slope
＜15°
Maximum Load Capacity
150kg
Battery
15km
Stair Slope
20-45°
Item Weight
80kg
Driving speed
8km/h
Maximum Slope
＜15°
1-Backrest
2-Foldable Armrest
3-Seat
4-Battery
5-Pedal
6-Driving Force
7-Display Light
8-Non-marking Non-slip Track
9-Rear Wheel
1.Backrest
2.Foldable Armrest
3.Seat
4.Battery
5.Pedal
6.Driving Force
7.Display Light
8.Non-marking Non-slip Track
9.Rear Wheel
All-terrain Mobility Robot
Cross obstacles, Up And Down Stairs, Climbing, Rotation
Detecting dangerous areas,Assist driving to safety zone,360° full-area loop detection, intelligent sensing of the dangerous state,the system automatically intervenes to control the driving and adjust to the safe zone.
